API 682 Mechanical Seals: A Plain-English Introduction

What API 682 Is

API 682 is the American Petroleum Institute standard for shaft sealing systems on centrifugal and rotary pumps — the pumps that move hydrocarbons, chemicals and water around refineries and petrochemical plants. It covers every aspect of a seal installation: the seal itself, the gland, the piping plans that flush and cool it, the materials, the testing and the documentation. When a datasheet says API 682, it is shorthand for a whole system of rules that make a seal installation predictable.

The standard exists for a practical reason: a refinery cannot afford to shut down a unit because an obscure seal variant failed and nobody can find a replacement. API 682 standardizes sizes, arrangements and materials so that seals from different manufacturers are interchangeable — you can swap in an equivalent seal from another approved vendor without re-engineering the pump. It also pushes reliability: the design and testing requirements are written so that seals last longer between overhauls.

The current edition, the fourth, restructured how the standard is organized but kept the core ideas intact. When someone says an API 682 seal, they usually mean a seal built and tested to this standard, complete with a documented piping plan and material class. The rest of this guide unpacks those three words — category, arrangement and material class — because they are the actual specification you will write on a purchase order.

The standard also covers the support systems around the seal — the flush plans, reservoirs, coolers and instrumentation that keep the faces wet, cool and clean. In refinery practice, the piping plan is often the difference between a seal that lasts an overhaul cycle and one that fails in weeks. That is why a complete API 682 datasheet reads like a small specification: seal type, category, arrangement, material class, piping plan and test requirements, all written down so that any competent vendor can quote, build and verify the same thing.

Category 1, 2 and 3 Seals

API 682 sorts seals into three categories by how demanding the service is. Category 1 is standard duty: moderate pressure and temperature, fluids that do not flash at the seal face, and normal rotating speeds. These are the workhorse seals of refineries — the ones on water, light hydrocarbons and general process service. They are tested per the standard and are typically the most economical API seals to buy.

Category 2 steps up for more demanding conditions: higher temperatures, higher pressures, or fluids close to their vapor pressure where the seal faces risk running dry on flashing liquid. Category 3 is severe duty — high pressure and temperature, hazardous or toxic media, and the strictest testing of all. As a rule of thumb, the more dangerous the fluid and the harsher the conditions, the higher the category number.

Category is not the same as arrangement. A Category 1 seal can be a single seal or a dual seal. The category tells you how rugged the seal and its testing must be; the arrangement tells you how many seals there are and how they are set up. Both appear on the seal spec, and both matter when you price or replace a seal. Read them together, never one without the other.

Category also influences price more than most buyers expect. Moving from Category 1 to Category 3 typically adds cost in testing, materials and design margin — but for a hydrogen service or a 200 °C process stream, that extra cost is insurance, not overhead. When a project specifies a category, treat it as a minimum: you can always buy a more rugged seal, but buying a lower category than specified is a compliance and safety problem, not a bargain. For most projects the category is fixed by company standards before you even ask, so the practical question is which vendor can deliver it reliably.

Seal Arrangements

Arrangement describes how many seals seal the shaft and how they are configured. Arrangement 1 is a single seal — one pair of faces between the process fluid and the atmosphere. It is the most common and the most economical arrangement, and it is entirely adequate for a wide range of refinery services where a small amount of controlled leakage to a drain or flare is acceptable.

Arrangement 2 is two seals in tandem: a primary seal doing the real sealing, with a second seal downstream acting as an unpressurized containment seal. If the primary seal fails, the containment seal stops the leak while the pump keeps running until a shutdown can be arranged. Arrangement 3 is a dual pressurized configuration — two seals back-to-back or face-to-face with a barrier fluid between them at a pressure above the process pressure. Nothing process-related reaches the atmosphere, which is why Arrangement 3 is chosen for toxic, flammable or otherwise hazardous services.

Choosing an arrangement is an engineering decision, not a preference. Single seals for benign service, tandem for protection against catastrophic leakage, pressurized dual for guaranteed containment of hazardous media. The barrier fluid in dual arrangements is supplied and conditioned by a piping plan — which brings us to the plans themselves. If you are replacing an existing seal, read its datasheet before choosing: the arrangement is usually fixed by the pump and the plant standard, not by preference.

There is a common misconception that a dual seal is simply two single seals bolted together. In practice the two seals share the gland, the sleeve and the barrier-fluid circuit, and they are engineered as one system. That is why you cannot reliably build an Arrangement 2 or 3 by stacking two off-the-shelf single seals — the containment and barrier-fluid paths have to be designed together, which is exactly what the API 682 arrangements standardize.

API 682 vs Commercial Seals

API 682 seals and commercial seals are not different kinds of hardware so much as different grades of the same hardware, built to different rules. A commercial seal from a reputable manufacturer can be an excellent product; an API 682 seal is a commercial seal with a documented design basis, standardized dimensions, controlled materials and tested performance. You pay for the documentation and the testing as much as for the metal.

None of this makes commercial seals bad. A commercial seal on a chilled water pump or a dosing skid is the right economic choice, and a properly selected commercial seal will serve as well as an API seal in that duty. The mistake is the reverse: buying a commercial seal for a service that genuinely needs API 682, or paying for API 682 when a good commercial seal does the job. Know the service first, then the grade.

Piping Plans Explained

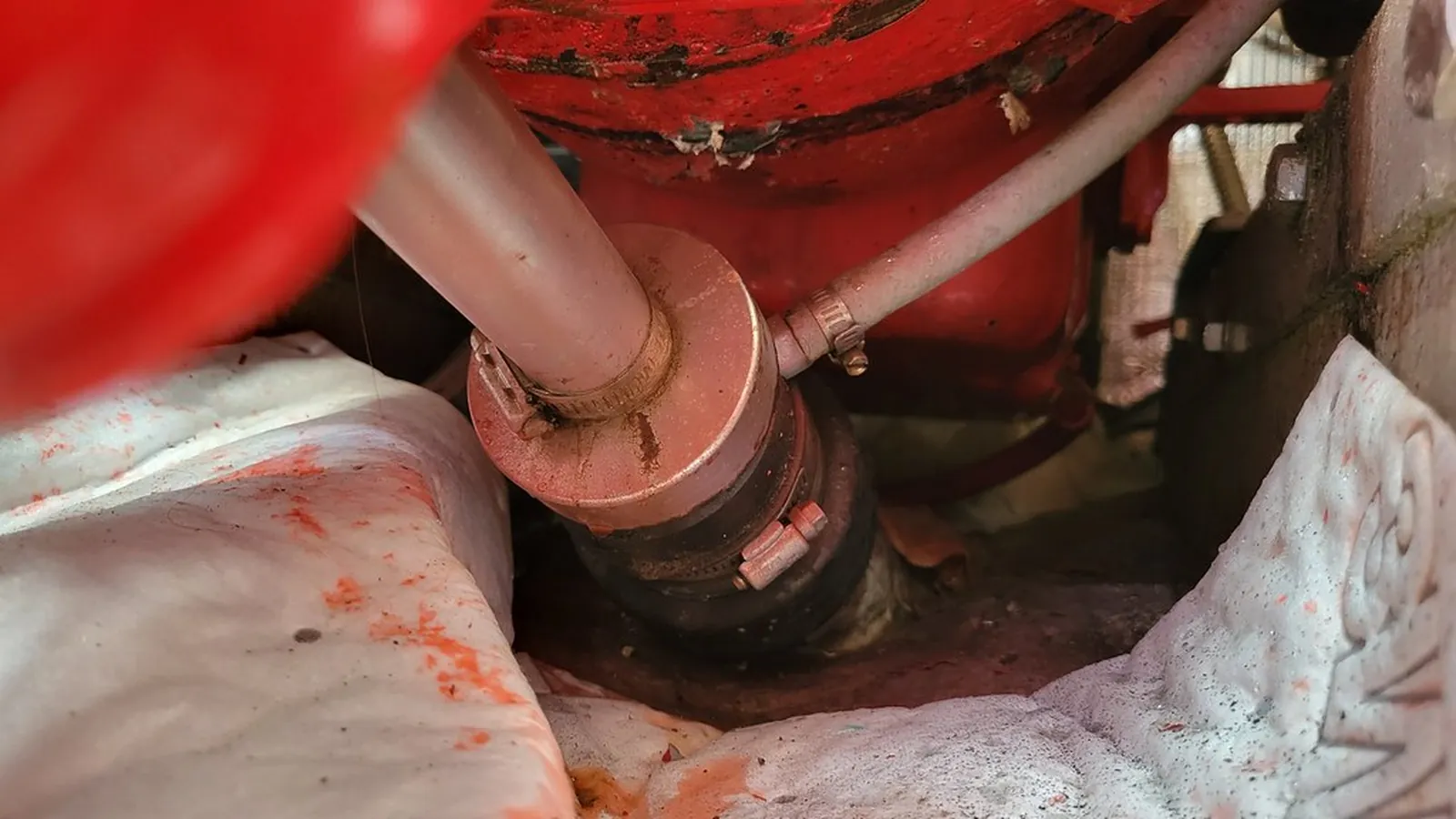

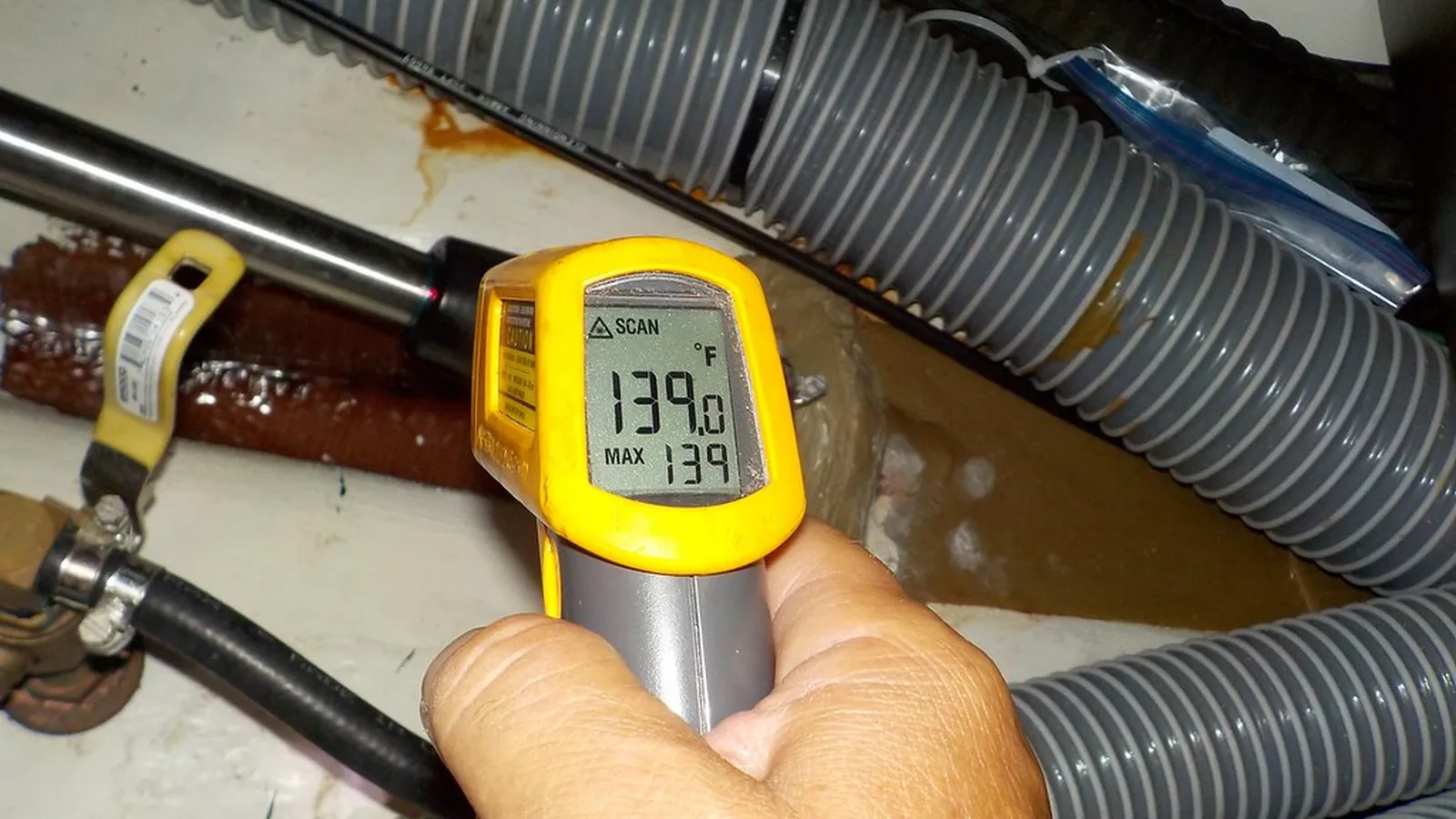

The piping plan is the plumbing that keeps the seal alive: it supplies flush liquid to the faces, cools them, removes solids, or feeds barrier fluid to a dual seal. API 682 defines these plans by number, and the number is written on the seal datasheet like a part of the seal itself — because a seal with the wrong plan will fail even if the seal itself is perfect.

Plans 11, 21 and 31 are single-seal plans; Plans 52, 53 and 54 belong to the dual-seal family. The naming logic is simple: the 5x plans serve dual seals, the 1x to 3x plans serve single seals. If you inherit a pump whose seal keeps failing, and the piping plan is missing or wrong — say a Plan 11 on a slurry service — fixing the plan often fixes the seal. When you order a replacement, ask which plan the pump is set up for, not just which seal.

Material Classes

Material class is the third ingredient of an API 682 spec. The standard defines three classes — A, B and C — that bundle face materials, metallurgy and elastomers for different services. Class A is the general-purpose choice for typical refinery service: carbon faces running against silicon carbide, stainless steel hardware and standard elastomers, suitable up to roughly 176 °C. Most refinery seals are Class A.

Class B is for higher temperatures and speeds, where standard elastomers cannot survive — expect high-temperature elastomers or metal bellows construction. Class C is for corrosive services where carbon faces would be attacked or eroded, typically pairing tungsten carbide or silicon carbide against silicon carbide, with corrosion-resistant hardware throughout. The material class, like category and arrangement, is written on the datasheet.

Do not try to out-engineer the class system. If your fluid is outside the comfort zone of Class A — very hot, very corrosive, or carrying solids — tell the supplier the full service conditions and let them propose the class. A seal quoted without a material class is an incomplete quote, and an incomplete quote on a refinery seal is a future failure.

Elastomer selection follows the same logic and is often the first thing to check when a seal fails young. A standard NBR O-ring has no business in hot chemicals, and an FKM elastomer can swell in some solvents. API 682 material classes bundle the elastomer with the faces precisely so that the buyer does not have to become a polymer chemist — the class tells you the whole material package, and the datasheet documents what is inside. When in doubt, name the exact chemical and its concentration; compatibility tables are only as good as the data you give them.

Do You Need API 682?

If your pumps run in refineries, petrochemical plants, gas plants or other API-regulated environments, the answer is almost always yes — plant engineering standards and insurance requirements will demand API 682 seals, and the documentation matters as much as the hardware. If your pumps serve water treatment, HVAC, food processing, general manufacturing or most municipal applications, a well-engineered commercial seal is appropriate and considerably more economical.

The honest middle ground: buy the grade the service demands, not the grade that sounds impressive. An API 682 seal on a garden-water booster pump is wasted money; a commercial seal on a hydrogen service is a safety question, not a budget question. When in doubt, send the service conditions — media, temperature, pressure, shaft size — to a supplier and ask for both options with reasons. The right answer is usually obvious once the service is on paper.

One more consideration: interchangeability over time. If your plant stocks seals for a hundred pumps, a single API 682 standard across those pumps means one set of spares, one set of datasheets and any approved vendor as a source. For a small operator with a handful of pumps, that argument disappears — buy commercial, keep it simple, and choose a supplier who documents what they ship. The same logic explains why standard seal sizes exist at all: a 35/60 seal is the same 35/60 seal in any plant on earth.

FAQ

Q: Is API 682 only for refineries?
A: It was written for refinery and petrochemical pumps, but any plant can adopt it. In practice, if your site is not in the oil, gas or chemical world, you will rarely see it specified.

Q: Are API 682 seals always more expensive?
A: Typically yes — you pay for standardized design, qualification testing and full documentation. The premium is usually justified where reliability and interchangeability matter.

Q: Can a commercial seal replace an API 682 seal?
A: Physically, often yes, if the dimensions match. But if plant standards or insurers require API 682, the paperwork matters as much as the hardware — check the requirement before substituting.

Q: What is the difference between category and arrangement?
A: Category describes the severity of the service and the testing required; arrangement describes how many seals there are and how they are configured. Both appear on the datasheet.

Q: Which piping plan do I need?
A: It depends on the service and the arrangement. A supplier should recommend the plan from your media, temperature, pressure and solids content — ask rather than guess.

Q: Do I need API 682 documentation for a small water pump?
A: Only if the plant standard or your customer requires it. For general water duty, a quality commercial seal with its standard documentation is the proportionate choice.

Q: What edition of API 682 is current?
A: The fourth edition is current. It reorganizes the standard while keeping categories, arrangements and material classes; your seal datasheet usually states the edition it was built to.

Q: Do dual seals always need a barrier fluid?
A: Arrangement 2 runs unpressurized and needs only a reservoir; Arrangement 3 is pressurized and needs a barrier-fluid system. The piping plan specifies which one your seal uses.

Q: What does seal flush mean?
A: Flush is clean liquid supplied to the seal chamber to cool the faces and keep them wet. Hot or flashing services will destroy a seal without it — the piping plan exists to provide exactly that.
