Mechanical Seal Types: Single vs Double vs Cartridge

Single Mechanical Seals

A single mechanical seal has one pair of sealing faces. It is the most common and cost-effective configuration for clean water, cooling water and general industrial service, and it accounts for the large majority of seals in circulation. One face rotates with the shaft, the other stays fixed in the gland, and a spring keeps the two faces in light contact while the pump runs. Because there is only one seal interface to worry about, first cost, spare part cost and maintenance effort all stay low.

Balanced designs extend the pressure range: a stepped shaft sleeve reduces the hydraulic load on the faces, so the seal can hold higher stuffing-box pressures without the faces separating. Unbalanced designs are simpler and cheaper for standard duty, but they carry the full hydraulic load across the faces, which limits how much pressure they can handle reliably. As a rough guide, unbalanced seals suit typical pressures up to about 10 bar in water service, while balanced seals push comfortably beyond that — confirm the actual window with your supplier.

Single seals suit the majority of duties because the fluid being pumped is not dangerous and the plant can tolerate small, controlled weepage at the faces. Face and elastomer choice still matters: silicon carbide against carbon handles most clean water, while harder combinations or tungsten carbide are used where the water carries grit. If your media is hazardous or abrasive, a single seal may still work with the right materials and flush plan, but this is where most plants move to a double seal instead.

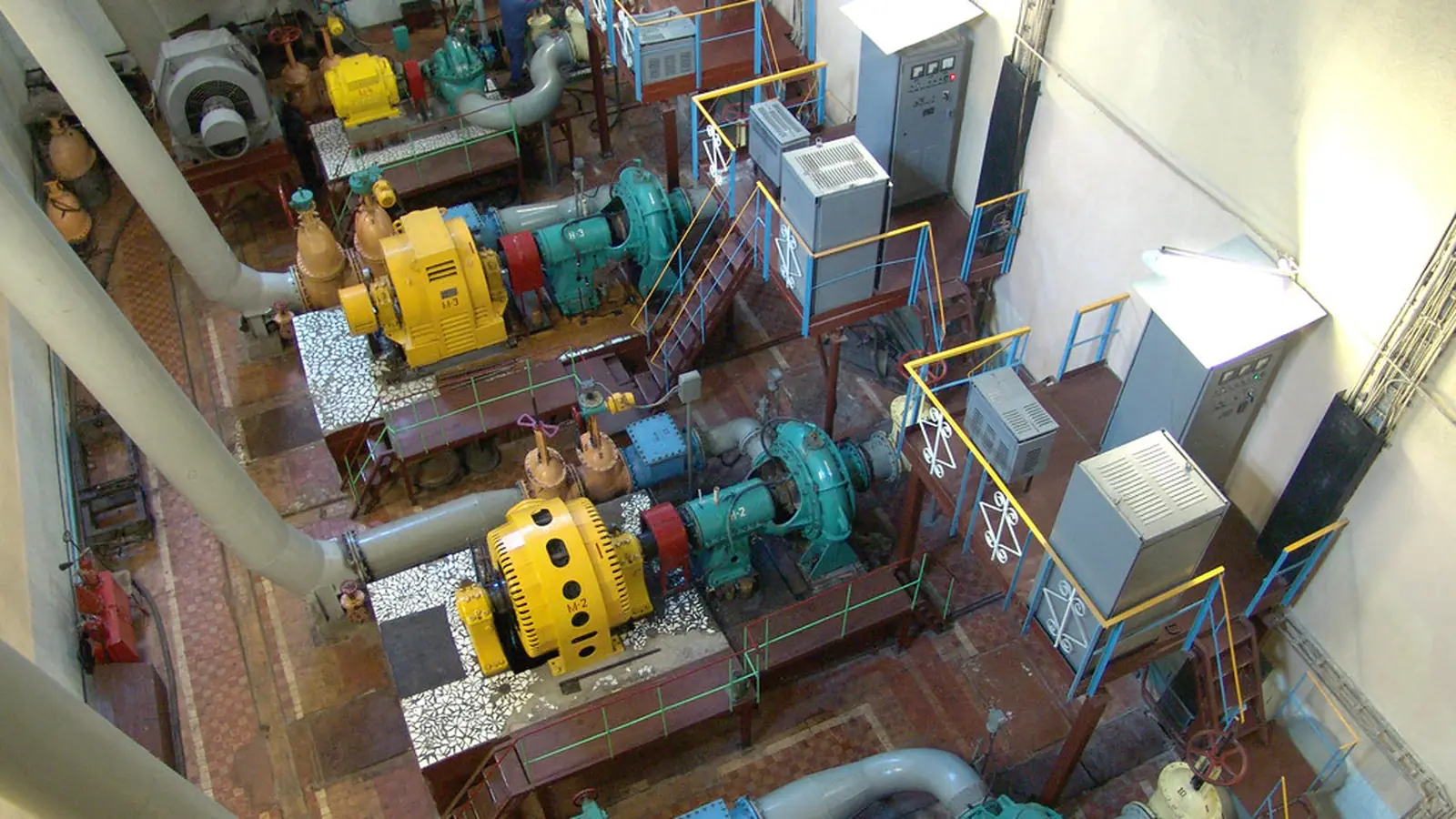

Most single seals on standard pumps fall into a familiar size pattern — shaft diameters from roughly 10 mm on small dosing pumps up to 100 mm and beyond on large process pumps — and the common sizes are stocked or built quickly. For dirty water, a flush plan keeps solids away from the faces: a clean water flush from the discharge or an external source, piped into the stuffing box. When a single seal is specified, it is worth confirming the flush arrangement with the supplier, because the seal and the flush plan are engineered as a pair.

Double Mechanical Seals

A double seal has two face pairs with barrier fluid between them, so the process fluid and the atmosphere are separated by two independent sealing lines. That arrangement does two jobs at once: it keeps the pumped media inside the pump, and it keeps the outside environment out of the media. If the primary (inboard) faces begin to leak, the barrier fluid — not the process media — is what crosses the secondary faces.

Tandem arrangements run the barrier fluid unpressurized and are mainly for containment and fugitive-emissions control. Dual arrangements run the barrier fluid at a higher pressure than the process, so the barrier fluid leaks inward across the inboard faces rather than allowing process fluid outward. The choice depends on whether you are containing a leak or preventing any contact between the media and the atmosphere at all.

Double seals cost more to buy, need a barrier fluid system, and take longer to install, so they are reserved for toxic, flammable, abrasive or polymerizing media, or where regulations require tight emissions control. The extra cost is insurance: one day of uncontrolled leakage of a hazardous chemical can cost far more than the seal itself. Our double mechanical seal guide covers the configurations and support systems in detail.

The support system deserves as much attention as the seal itself. A double seal without a properly sized reservoir, pressure source or circulation loop is a single seal with expensive spare parts. Budget for the barrier panel, the piping, the instruments and the operator training when you calculate the cost of moving to a double seal — the seal is only half the investment.

Cartridge Mechanical Seals

A cartridge seal is a complete, pre-assembled unit: faces, springs, gland, sleeve and set screws, all set to the correct compression at the factory. The installer bolts it on without measuring spring compression or aligning faces. The unit slides onto the shaft, the gland is bolted to the pump, and the set screws are tightened — the critical settings were already done under controlled conditions.

Installation error is the single most common cause of premature seal failure. Component seals demand careful measuring, clean handling and experience; a cartridge seal removes most of that risk from the jobsite. That is why plants with mixed maintenance skills, night-shift repairs or critical pumps increasingly standardize on cartridge units.

The trade-off is price: a cartridge unit typically costs more than the equivalent component seal. The higher unit price is usually repaid by faster installation and fewer premature failures — but not always, and the decision is covered in more depth in our cartridge seal guide.

Split and Bellows Seals

Split seals install in two halves around the shaft, which means the pump does not have to be dismantled to replace the seal. For large pumps and mixers, where pulling the coupling, motor and casing can take a full shift or more, that is a decisive advantage. The two halves are assembled around the shaft in place and joined with gasketed split lines.

Bellows seals replace the coil spring with a flexible metal or elastomer bellows that pushes the faces together. With no small springs and no dynamic O-rings at the shaft, there is less to clog, corrode or stick, which makes bellows seals a good answer where springs clog with solids or corrode in aggressive chemicals.

Both are specialty configurations for specific problems rather than everyday choices. Split seals generally run at lower pressure than solid designs because of the split-line joints, and metal bellows seals carry a higher price tag. Match them to the problem, not to fashion — a standard single or cartridge seal is still the right answer for most pumps.

When to avoid them: split seals are not the first choice for high pressures or for media that must not see a single gasketed joint, and bellows seals cost more than spring designs of equal size. Use them where the problem they solve is real — a mixer you cannot economically dismantle, or a service where springs fail repeatedly — and keep standard designs elsewhere.

Which Type Do You Need?

Rule of thumb: a single seal for clean water and light duty; a cartridge seal when downtime is expensive or installers vary in skill; a double seal when the media is hazardous or abrasive; a split seal when the pump is too expensive to dismantle. Start from the media first, then the duty, then your maintenance situation.

• Water, glycol, light chemicals, no solids → single seal
• Hazardous, toxic, flammable or abrasive media → double seal
• Critical pump, limited maintenance time, varied installer skill → cartridge seal
• Large pump or mixer where dismantling is costly → split seal
• Clogging, corrosive or high-temperature service where springs are a problem → bellows seal

When in doubt, send your pump details to a supplier and let them confirm. A few minutes with the pump model, shaft size, media and pressure will usually rule out half the options. The tables below give the typical ranges so you can shortlist before you call.

Selection Decision Table

The table below compares the common configurations at a glance. Figures are typical ranges for industrial service — your exact duty will move them, so use them to shortlist, then confirm with your supplier.

Read the table as a shortlist, not a verdict. First cost is the smallest part of owning a seal — the sections below look at pressure and temperature windows, then the real cost of ownership.

If two configurations both look viable from the table, the tie-breaker is usually your maintenance environment rather than the seal itself: where installers are experienced and pumps are accessible, the simpler unit wins; where every change is a fight against the clock, the pre-set unit wins. In either case, ask the supplier for the failure history of the configuration you are considering — real-world feedback beats catalogue promises.

Pressure and Temperature Windows

Every seal has a working window defined by pressure, temperature and shaft speed, and the combination matters more than any single number. At the stuffing box, typical industrial pumps run from a few bar up to roughly 25 bar, with special high-pressure pumps going higher. Temperature is usually the limiting factor for elastomers: NBR suits roughly -30 to 100 °C, EPDM covers hot water and steam condensate up to about 150 °C, and FKM handles oils and chemicals to around 200 °C — confirm the exact grade with your supplier.

Face materials set the pressure and speed side of the window. Carbon against silicon carbide is the workhorse combination for clean water; silicon carbide against silicon carbide suits abrasive duties; tungsten carbide is used for heavy solids. PTFE faces tolerate aggressive chemicals but wear faster. When pressure, temperature and speed are all high at once, the combination — the PV value — decides whether the faces survive, which is why high-duty seals are engineered per application rather than picked from a table.

Two practical points. First, a seal sized for a 50 mm shaft at 10 bar is a different product from the same shaft at 40 bar — tell your supplier the actual operating conditions, not just the pump model. Second, do not forget the pump-side limits: the stuffing box depth and bore must suit the seal, and the shaft must be concentric and free of runout. A seal will not fix a bent shaft.

The elastomer table is a starting point, not a specification: continuous operation near the top of any range shortens elastomer life, and compatibility with the pumped chemical must be checked against the supplier's data. When temperature and chemical attack arrive together, expect to move up the material chain — and expect the price to move with it.

Cost of Ownership Comparison

First cost is a small fraction of what a seal costs over its life. A typical industrial seal might cost a few hundred dollars, but the labour to replace it, the lost production and the risk of secondary damage usually outweigh the part price several times over. When comparing quotes, it is worth calculating total cost of ownership rather than unit price.

Worked example: a component seal at $180 takes a skilled fitter 3 hours to install at $40/hour labour, and the pump is down for most of a shift. A cartridge seal at $280 installs in 45 minutes with a general mechanic. Even ignoring the value of production lost, the cartridge is often cheaper on the first change — and the second change is faster still because the cartridge comes off and goes on as one unit.

Double seals change the picture because they add a barrier fluid system: reservoir, piping, gauges and possibly a pressure source, plus the cost of the barrier fluid itself and its monitoring. Split seals add little per change but carry a premium in the first purchase, especially in large sizes. Add your own labour rate and downtime value and the right choice usually becomes obvious.

Spares strategy is part of the cost too. Holding one cartridge per critical pump ties up more capital than holding a spring kit, but it guarantees a same-shift fix. Many plants compromise: cartridge units on the critical list, component spares for the rest, and a standing agreement with the supplier for fast delivery of the fast-moving sizes.

Common Misconceptions

"Cartridge seals do not leak" is a common belief, but it is not true. Any mechanical seal — cartridge, double, split — relies on a thin film of fluid between the faces and can develop leaks when the duty changes, the faces wear or the pump loses alignment. What a cartridge seal genuinely improves is installation consistency, not magic.

"A double seal lasts twice as long" is also not automatic. The second face pair adds redundancy and containment, but life still depends on the media, the barrier fluid plan and the operating conditions. A poorly selected double seal fails just as surely as a poorly selected single seal — it simply fails more expensively.

• "All seals with the same shaft size are interchangeable" — bore, gland and stuffing box depth must also match
• "More spring pressure means a tighter seal" — excess spring load increases face wear and heat
• "A small leak can be left until the next overhaul" — small leaks grow; address them at the next planned stop
• "A new seal fixes a noisy pump" — check bearings, alignment and cavitation first

The pattern behind all of these: seals are engineered components with limits, not consumables you can over-tighten into obedience. Treat them as such and they give predictable service.

FAQ

Quick answers to the questions buyers ask most often.

• Which seal type lasts the longest? Life depends far more on duty, materials and installation than on configuration. A well-selected single seal in clean water can outlast a poorly selected double seal in abrasive slurry. Choose the right type, then keep the pump in good condition.
• Can I convert a component seal pump to cartridge? In most cases yes, if the stuffing box and gland fit a cartridge unit. Many cartridge seals are direct replacements for common component sizes — check the bore and shaft details with your supplier.
• Do I need a double seal for hot water? Usually not. Hot water up to 100 °C or a little beyond is handled by single seals with the right elastomer (EPDM) and a flush plan. Double seals are for hazardous or process-critical media.
• What is the most common cause of seal failure? Installation error, followed by pump misalignment, cavitation and running dry. That is why cartridge and double seals exist — they remove or contain the most common failure drivers.
• How do I know which seal size my pump takes? Measure the shaft diameter at the seal location, the stuffing box bore and depth, and note the pump model and manufacturer. With those numbers a supplier can normally identify the seal family.
• Are cartridge seals available for every pump? For most standard pumps yes, including common end-suction and split-case designs. For unusual or very large machines, a custom cartridge can be made — OEM custom work is common in this industry.
