Cartridge Mechanical Seals: Why They Cut Downtime

What Makes a Cartridge Seal Different

A cartridge seal is shipped as one complete assembly — faces, springs, gland plate, sleeve and set screws, all pre-set to the correct compression. The installer does not measure anything. They slide the unit onto the shaft, tighten the gland, and the seal is already correctly set. What would normally be done on the bench — measuring spring length, setting face compression, aligning the gland — was done at the factory, where it can be checked properly.

The practical difference shows up in the repair bay. With a component seal, the fitter has to calculate the correct compression, sometimes adjust shims, and hope the faces seat true. With a cartridge seal, the critical decisions were made by people who build seals all day. The installer's job shrinks to surface preparation and correct tightening, which is why plants trust cartridge seals to night-shift crews and general mechanics.

Two things a cartridge seal does not remove: the pump still has to be in reasonable condition, and the shaft and bore still have to be clean and within spec. What it removes is the skill-sensitive part of installation — the part most often blamed when a seal fails early.

A typical cartridge contains more than the faces: gland plate, shaft sleeve, springs, drive pins, O-rings and set screws, all assembled and set on a fixture that holds the compression at the design value. That assembly is the whole product — which is why a cartridge is ordered as one part number and why the supplier, not the fitter, owns the setting quality.

The Real Cost Comparison

The cartridge seal unit price is higher — sometimes 30-60% more than a component seal. But count the full cost: a component seal installation takes 2-4 hours with a skilled fitter; a cartridge takes 30-60 minutes with a general mechanic. On a critical pump, one day of downtime can cost more than a dozen cartridge seals, so the comparison belongs at plant level, not part level.

There is also a second, quieter cost: the failure that never happens. Component seals fail early most often because of installation mistakes — wrong compression, damaged faces, misplaced O-rings. Each early failure is another round of parts, labour and downtime. Cartridge seals shift that risk to the factory, where it is measured and controlled.

Worked example across ten seal changes: ten component seals at $180 plus ten 3-hour installations at $40/hour labour comes to $3,000 before any early-failure repeat. Ten cartridge seals at $280 plus ten 45-minute installations comes to $3,100 — nearly identical, with far less downtime exposure. The cartridge premium often disappears on paper the moment you include labour, and disappears completely when you include downtime.

There are softer costs on the component side too: training fitters to set seals correctly, holding the right measuring tools, and accepting that a proportion of night-shift repairs will be done by whoever is available. Every one of those variables is a small risk multiplier; cartridge seals do not eliminate them, but they shrink the ones that depend on the installer's hands. The arithmetic changes completely on unmanned or remote sites, where a failed installation means a second visit and a second round of downtime.

When to Choose Cartridge

Choose cartridge when: the pump is hard to access, installers have varying skill levels, the pump is critical to production, or you want consistent, repeatable installations. These are the conditions where the pre-set factory assembly pays for itself fastest.

• Critical pumps where an extra shift of downtime is unacceptable
• Pumps in awkward locations — under tanks, in pits, behind pipework
• Shops with mixed skill levels or high staff turnover
• Repeat replacements where you want the same result every time
• OEM pump builders who want warranty risk reduced at the point of assembly

For simple, clean, easy-to-access pumps with an experienced maintenance team, a component seal remains cost-effective. The question is not which seal is "better" — it is which one fails less often in your specific maintenance environment.

OEM pump builders are a special case: a cartridge seal fitted at the factory removes a variable from their own warranty exposure, because the customer's maintenance crew can replace the seal without special skills. That is why many pump ranges now ship with cartridge seals as standard — the builder is protecting its own reputation as much as the end user's uptime.

One more consideration is the pump's future: if the machine is expected to run for another decade and the original seal comes from a supplier that is slow or expensive, standardizing on a cartridge family gives you a second source and a simpler spares pipeline. Buying into a cartridge standard is also buying flexibility — one training session and one spare logic covers every pump in the plant. If a supplier cannot show you cartridge installations in your own industry, that is a question worth asking before you standardize.

Installation in Practice

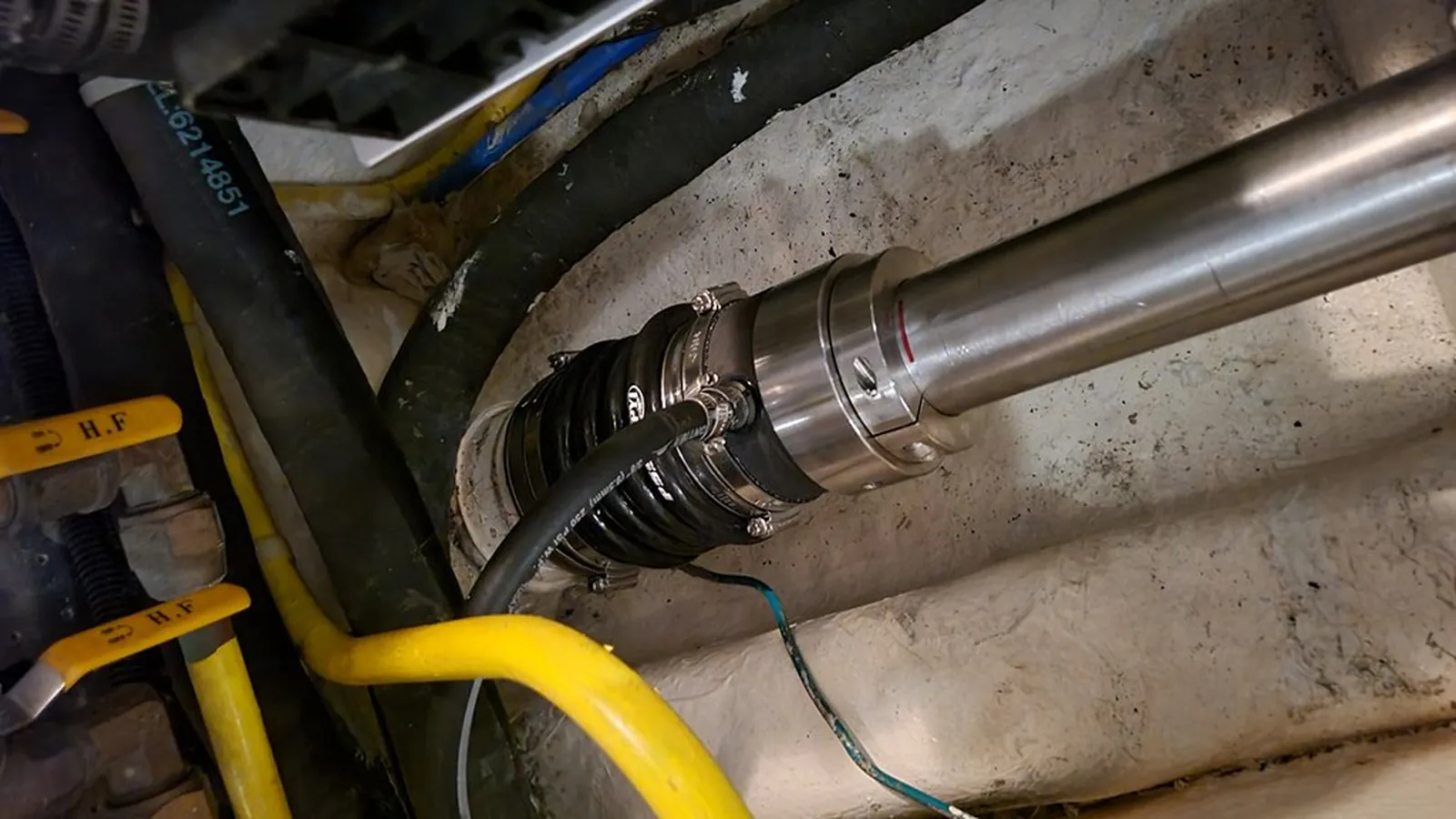

Even a cartridge seal needs a clean shaft, correct bore, and no sharp edges that could damage the elastomer. The difference is that the critical settings — spring compression and face alignment — are already done at the factory, where they can be measured properly.

The installer's checklist is short: clean the shaft and remove burrs or weld splatter; check the shaft for wear or corrosion at the seal area; lubricate the elastomers with the recommended fluid (not grease that attacks the rubber); slide the cartridge home without cocking it; tighten gland bolts evenly in a criss-cross pattern; and torque the set screws to spec. Most of the classic early-failure causes happen in these few minutes.

Do not overtighten the gland. Gland bolt torque matters because distortion of the gland distorts the faces. If the pump has run dry, check the faces for heat damage before reinstalling anything — a cartridge seal will not save a pump that keeps running dry.

• Overtightening gland bolts, distorting the gland and faces
• Forgetting to remove transport spacers before start-up (where fitted)
• Using the wrong lubricant on the elastomers
• Fitting the set screws onto a worn or pitted shaft area
• Skipping the shaft runout check on a pump that has taken a hit

The last item deserves emphasis: cartridge seals protect the installer from measuring, but they cannot protect the pump from a bent shaft. A quick dial-indicator check of runout before fitting — a ten-minute job — catches the problems that would otherwise be blamed on the seal.

Cartridge vs Component Seals

The two families serve the same pumps, so the real question is where each one shines. The table below summarizes the practical differences in the terms that matter to maintenance and purchasing.

Neither is "better" in the abstract. Component seals dominate in price-sensitive, low-risk service; cartridge seals dominate where a failed installation is expensive. Many plants now stock cartridge units for critical pumps and component seals for the rest, which gets the best of both.

The hybrid option is worth knowing about: cartridge conversion kits that reuse the existing gland or spacer while adding a pre-set cartridge insert. They cost less than a full cartridge and still remove the measuring step, which makes them a popular upgrade path for plants that are not ready to standardize completely.

One common fear is worth addressing: that a cartridge seal is harder to service because it arrives assembled. In practice the opposite is true — the unit comes off as one piece and the supplier re-builds it on a fixture, which is why most cartridge seals are exchanged rather than repaired in the field. Your workshop no longer needs the bench skills for face lapping or spring setting, and the returned unit gives the supplier a complete picture of how the seal actually ran.

Bore and Shaft Requirements

A cartridge seal is not a universal fit. The stuffing box bore and shaft diameter must suit the seal family: common industrial pumps follow ISO 3069 (metric) or API 610 (refinery and heavy process) stuffing box dimensions. If the bore is too small the seal will not go in; if it is too large the gland will not sit correctly and the faces can distort.

Before ordering, measure three things: shaft diameter at the seal location, stuffing box bore, and stuffing box depth. Tolerances matter: a shaft worn by 0.1-0.2 mm at the seal area is a common reason seals fail to seat — sleeves or oversize seals may be needed. The same applies to runout: excessive shaft runout makes any seal, cartridge or not, work against a moving target.

ISO 3069 defines the standard stuffing box dimensions that most European-style and metric pumps follow, while API 610 pumps use the heavier-duty API dimensions with larger bores. If your pump is a known brand, the seal supplier can usually match the family from model and shaft size alone — but when in doubt, measure. Confirm the bore and shaft details with your supplier before ordering.

Measuring is straightforward: a caliper for shaft and bore diameters, a depth gauge or ruler for the stuffing box depth, and a dial indicator on the shaft for runout. Do the measurements with the pump cold and dry, and record them — the numbers are what the supplier works from, and they are also your record if a replacement is ever needed in a hurry.

Installation Time Study

Installation time is where the cartridge argument is won or lost. Typical figures from maintenance records: a component seal change on a standard end-suction pump runs 2-4 hours including stripping the coupling, removing the old seal and setting the new one; a cartridge change on the same pump runs 30-60 minutes.

A worked example: a plant with twelve process pumps changes each seal twice a year. Component approach: 24 changes × 3 hours = 72 fitter-hours plus stripping the pumps each time. Cartridge approach: 24 changes × 45 minutes = 18 hours, and the seal change no longer needs the most experienced fitter. The saved 54 hours covers a large share of the cartridge price difference.

The trend line is clear: the bigger and more complex the pump, the wider the gap. The fixed overhead of stripping and re-assembling the pump dominates a component change, while a cartridge change is mostly the same work regardless of pump size.

Time savings grow on large pumps. On a split-case or vertical pump where the coupling, spacer and sometimes the motor have to come off, a component change can take a full shift or more, while a cartridge unit — particularly a split cartridge — is changed in a couple of hours without disturbing the coupling. The bigger and harder to access the pump, the stronger the cartridge case.

Maintenance Benefits

Beyond installation, cartridge seals simplify the maintenance programme itself. One part number covers a complete seal, so stores holding one cartridge per pump no longer juggle faces, springs, O-rings and gland plates from different kits. Kitting errors — the classic source of "wrong parts" downtime — largely disappear.

Failure analysis is easier too. Because the seal is removed as one unit, it can be returned to the supplier intact, and the supplier can read the wear pattern: face damage from cavitation looks different from heat checking from running dry, and both look different from spring fatigue. That diagnosis feeds back into the next purchase — better materials, a flush plan, or a different configuration.

Maintenance planning also improves. With component seals, a seal change often turns into an open-ended repair when the fitter finds a worn sleeve or a corroded gland. With a cartridge, the swap is predictable, the spares list is short, and the planned stop stays on schedule. That predictability is worth real money when maintenance windows are tight.

Training is another quiet saving. A new mechanic can be taught to change a cartridge seal in an hour; teaching the same person to set a component seal properly takes days of supervised practice and a stock of ruined seals along the way. For plants with steady staff turnover, the cartridge standard reduces the cost of every new hire.

FAQ

The questions maintenance and purchasing teams ask most.

• Are cartridge seals worth it for clean water pumps? Often not — if the pump is easy to access and your team is experienced, a component seal is cheaper and perfectly adequate. Cartridge seals pay off where downtime is expensive or skills vary.
• Can a cartridge seal replace a component seal without modifying the pump? Usually yes, if the shaft and bore dimensions match the cartridge family. Many cartridge seals are drop-in replacements for common component sizes — confirm bore and depth with your supplier.
• Why do cartridge seals cost more? Because they contain more parts — gland, sleeve, pre-set springs — and the factory setting is real labour. You are buying the installation skill in the box, not just the parts.
• Do cartridge seals eliminate seal failure? No. They reduce installation-related failures and make changes predictable, but duty, pump condition and operation still decide life. No seal is completely free of maintenance.
• How often should a cartridge seal be replaced? There is no fixed interval — replace when leakage rises, the pump is due for overhaul, or inspection shows wear. Many cartridge seals run for years in clean water service.
• Do I need special tools? No — a standard toolbox with the right wrenches and a torque wrench is enough. That is one of the points of the design.
• What size range do cartridge seals cover? Typical shaft sizes run from about 10 mm on dosing pumps to 150 mm and beyond on large process and mixer duty, with metric (ISO) and inch sizes both available. If your machine falls outside the standard range, a custom cartridge is a normal OEM request.
• Do cartridge seals work on slurry or abrasive service? Yes, with the right face materials — silicon carbide against silicon carbide is common — and the same caveats as any seal: adequate flush, clean barrier conditions and reasonable pump health. The cartridge format does not change the material engineering; it changes the installation.
• Does a cartridge seal fit my existing gland? Cartridge seals are self-contained, so they bring their own gland — your existing gland is usually removed. If the pump bore and bolt pattern suit the cartridge gland, no modification is needed; confirm with the supplier.
