How to Replace a Pump Mechanical Seal (Step-by-Step)

Tools You Will Need

Basic hand tools, a puller for the old seal, fine abrasive paper (1200 grit or finer) for the shaft, clean lint-free cloths, a seal installation tool or sleeve, and the correct replacement seal. Do not improvise with screwdrivers to pry seals — you will scratch the shaft.

Go through the list in detail before you start: a two- or three-jaw puller sized for the old seal, a caliper for measuring shaft and bore, fine abrasive paper at 1200 grit or finer, lint-free cloths, the seal maker's recommended lubricant, an installation sleeve, a torque wrench for the gland bolts, and the replacement seal itself — confirmed for your shaft and bore before you begin.

Also worth having on the bench: the pump manual, the seal instruction sheet, clean gloves, a tray for small parts, and a marker for recording measurements. Organize everything before you start. Seal jobs go wrong in the moments when someone improvises a tool.

If you are replacing a cartridge seal, add the correct gland bolt wrench size and a coupling puller to the list. If you are fitting a component seal, add a depth gauge or vernier for setting spring compression. And check the seal kit before you start: it should contain every elastomer, the gland gasket, and any set screws for the size you ordered. A kit missing a part means a trip to the store mid-job — and a partially assembled seal sitting on the bench is a risk to the faces.

Safety First: Lock Out, Tag Out

Before any wrench turns: lock out and tag out. Isolate the motor at the breaker, apply your site's lock and tag, and verify the pump cannot be started — including remote starts from a control room. Mechanical isolation matters too: close and lock the suction and discharge valves, and block the coupling if there is any chance the pump can be rotated by an external drive.

Drain the casing into a suitable container, not the floor. Confirm the media is not pressurized, hot or hazardous before you open anything. Wear the PPE your site requires — gloves, eye protection, and chemical-rated gear if the media demands it. Nobody plans a chemical splash; it just happens.

Finally, check the work area: overhead lifting for heavy pumps, a clear path if the pump or motor must be moved, and good lighting. The extra five minutes of preparation is what makes the rest of this guide safe to follow.

Two more checks before work begins. If the pump is inside a pit or confined space, follow your site's confined-space procedure — gas testing, ventilation and a standby person are not optional. If the pump or motor is heavy, arrange the lifting gear and check the slings before you start; a seal job that turns into a rigging job halfway through is how accidents happen.

Step 1: Disconnect and Drain

Isolate the pump electrically and mechanically. Close the valves, drain the casing, and remove the coupling guard. Tag out the power per your site procedure.

Disconnect the coupling carefully and mark the two halves so they go back in the same orientation. Remove the coupling guard and store its fixings where they will not get lost. Then open the drain valve and any vent, and let the casing empty completely — trapped liquid is a hazard the moment you break the joint.

On pumps with a flush or quench line, close and disconnect those too: the seal chamber holds liquid even after the casing is drained. Confirm the chamber is at atmospheric pressure before removing the gland bolts. A pressurized chamber will blow the gland off the studs.

While the pump is apart is also the right moment to record the coupling alignment readings, even if you are not planning to realign. Note the gap and offset between the coupling halves. If the new seal fails early and the diagnosis later points to alignment, you will have a baseline instead of a guess.

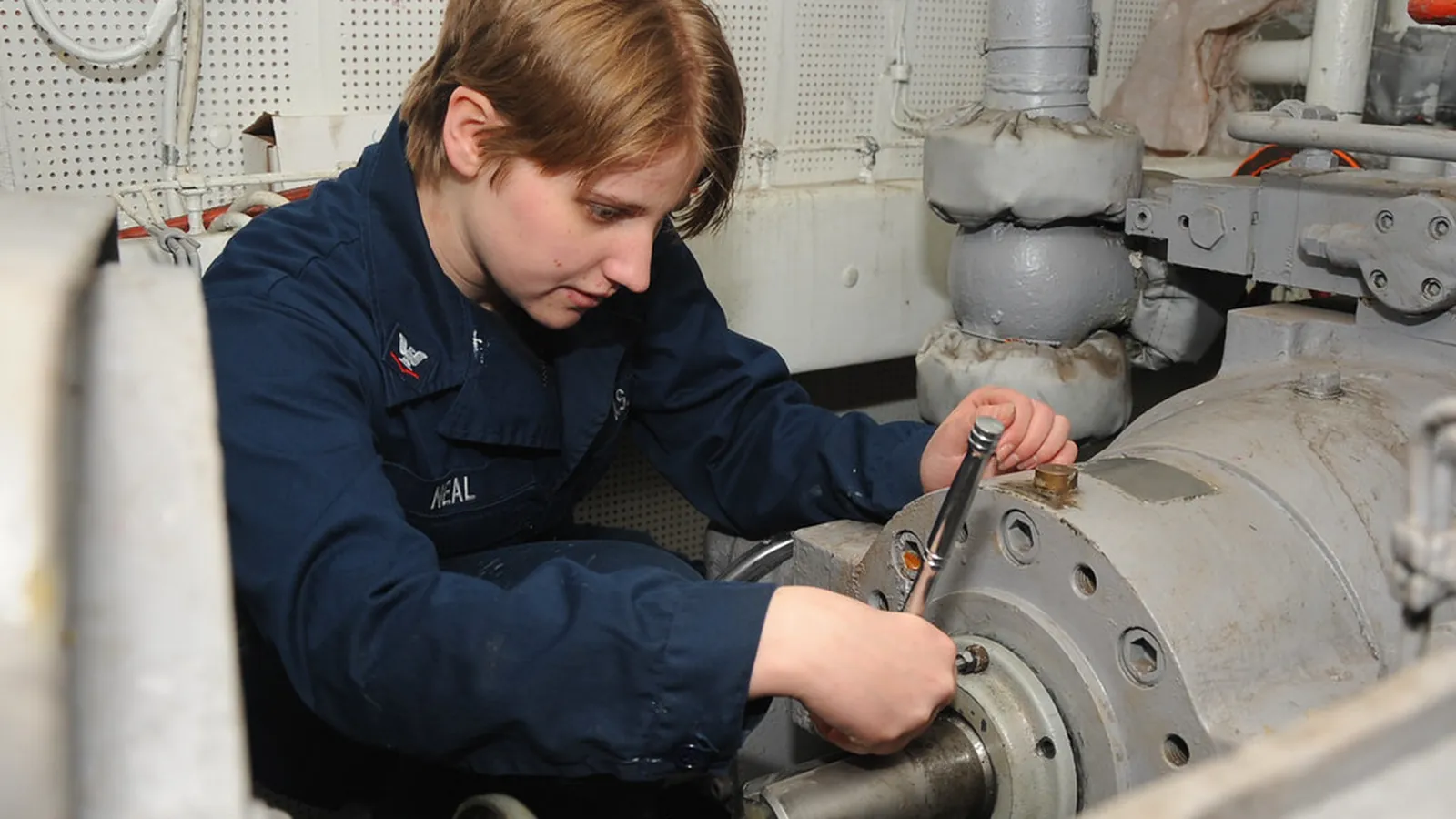

Step 2: Remove the Old Seal

Remove the gland bolts, then the gland and the rotating part of the seal. If the seal is stuck, use a puller. Note the old seal details: part number, shaft diameter, bore — these confirm the replacement.

Work around the gland evenly: loosen all bolts a little, then remove them. If the gland is stuck, tap it gently with a soft-faced hammer — never pry with a screwdriver against the shaft. Slide the gland and stationary parts off, then the rotating assembly. If the rotating part is seized on the shaft, a puller working against the impeller or a sacrificial spacer is the safe way; force with a bar can bend the shaft.

Before you discard the old seal, record what you can: the part number, shaft diameter, bore, and anything stamped on the gland. Note the failure mode — worn faces, swollen elastomer, cracked face. That is free diagnostic data for the next seal, and it costs you thirty seconds.

Read the old seal like a report. Scored or grooved faces: abrasives or dirt in the system. Heat discoloration or a cracked face: dry running or over-compression. A swollen or hardened elastomer: media incompatibility. Even, clean wear with a slow leak: normal end-of-life. Photograph the faces before disposal — a photo is worth more than a description when you call your supplier.

If the hardware is corroded — common on pumps that have run hot or outdoors — treat it before it fights back. Soak studs and bolts with penetrating oil the evening before the job. Use correct six-point sockets, not adjustable wrenches, and replace any bolt that rounds or stretches. If a stud breaks off in the casing, stop and assess: drilling out a broken stud in place is a specialist job, and forcing it can damage the casing beyond a cheap repair.

Step 3: Prepare the Shaft and Bore

Clean the shaft with fine abrasive paper and a lint-free cloth to remove scale, rust and old adhesive. Check for grooves or wear — a damaged shaft will destroy a new seal quickly. Clean the seal chamber bore.

Inspect the shaft where the seal rides. Grooves, rust pits and wear steps mean the shaft must be repaired or sleeved before a new seal goes on — a new seal on a damaged shaft fails fast, and the shaft does the damage. Polish lightly with 1200-grit paper, working around the circumference, then wipe with a lint-free cloth.

Clean the seal chamber bore of scale, old gasket material and debris. Check the bore for pitting or out-of-round: a corroded bore lets the stationary seat sit crooked, and a crooked seat leaks. If the bore is damaged, discuss a gland adapter or bore repair with your supplier before installing.

Finally, wipe the shaft and bore with the recommended cleaner and let them dry. The installation surface should be clean, dry and smooth — the new seal deserves the same surface the factory used.

If the shaft has a wear step deeper than a light polish can remove, do not sand it out — sanding a worn step makes it worse. The options are shaft replacement, a shaft sleeve, or a repair by hard-chrome or thermal spray, depending on the pump. Discuss the repair with your supplier or a machine shop before ordering the new seal; some seal designs tolerate a small repair, others do not.

How to Measure Shaft and Bore

Measure before you order, and measure again before you install. Use a caliper, not a tape measure. Shaft diameter is measured at the point where the seal rides, in millimetres, and recorded twice — a single reading can hide a taper or an out-of-round shaft.

Bore measurement is the chamber opening where the gland sits. Measure across the bore in two directions, 90 degrees apart, and record both values. For the gland bolt pattern, note the bolt circle and stud size — this matters when the replacement gland must match the existing studs.

• Measure shaft diameter at the seal location — not the motor end
• Measure the bore in two directions, 90 degrees apart
• Record gland bolt spacing and stud size
• Note the pump model and serial plate details
• If anything is worn or out of round, say so when you order

A seal ordered from wrong measurements is a return, a delay and a second downtime — all three cost more than the caliper you avoided using.

Tolerances are tighter than most people expect: shaft fits for mechanical seals typically run to a few hundredths of a millimetre, and bore fits are similar. That is why a tape measure is not good enough, and why a reused, worn shaft changes the effective fit. If you cannot get a clean reading, or the shaft is visibly worn at the seal location, say so when you order — a supplier can recommend a sleeve size or a seal designed for a worn shaft.

For context, the most common seal sizes in service sit between 20 mm and 60 mm shaft diameter — the range covered by standard seal stocks worldwide. Outside that band, lead times grow. If your pump is in the standard range, a supplier can usually quote from stock; if it is larger or non-standard, expect made-to-order and plan your spare stock accordingly.

Step 4: Install the New Seal

Lubricate the elastomer with the recommended lubricant (not grease unless specified). Slide the seal over the shaft using a sleeve to protect the faces. Seat the stationary face squarely, mount the gland, and set the spring compression per the instructions.

Unpack the seal only when you are ready to fit it. Check the faces are clean and undamaged — a chip or scratch on a lapped face cannot be polished out in the field. Lubricate the elastomers with the lubricant specified for that elastomer and media combination; the wrong lubricant can swell the elastomer.

Slide the seal over the shaft using the installation sleeve so the faces never touch the keyway or the shaft shoulder. Seat the stationary face squarely in the bore — a cocked seat is a guaranteed leak. Mount the gland, then set spring compression exactly per the instruction sheet, using the setting marks on the sleeve.

The install differs slightly for cartridge seals: no spring setting is needed — the factory set it — and the sleeve stays on the shaft as part of the assembly. Your job is to clean the shaft, lubricate the elastomers, slide the cartridge on, tighten the set screws evenly, and torque the gland bolts. If you are used to component seals, resist the urge to adjust a cartridge; it was set with fixtures you do not have.

Step 5: Reassemble and Test

Reinstall the coupling and guard, open the valves, and run the pump briefly. Check for leaks at startup, after thermal stabilization and after a few hours. A small initial weep can be normal; a persistent leak means something is wrong.

Refit the coupling halves in the orientation you marked, reinstall the coupling guard before anyone runs the pump, and reconnect the flush or quench lines. Open the suction valve, fill the casing slowly and bleed trapped air — running with air in the casing risks dry running at the faces.

Start the pump briefly and check for leaks at three points: immediately at startup, after the pump reaches thermal stability, and after a few hours of normal running. A light weep during the first minutes of run-in can be normal as the faces lap together; a persistent leak means something is wrong, and running on is not the fix.

Set the acceptance criteria before you start the pump so the test is not improvised. Agree what counts as a pass: no drip at the gland after the first hour of steady running, gland temperature close to the fluid temperature, and no new vibration. Write the result down. If the pump fails the test, grade the leak — weep, drip or spray — and work through the causes in our leaking guide before touching the seal again.

Before the test run, verify the flush or quench line is actually flowing — many seal failures within the first week of a replacement are starving flush lines. On a pump with a sight glass, confirm flow; without one, crack the drain and confirm liquid. A seal installed perfectly but run without flush fails exactly like a badly installed one, and the failure photos look the same.

The first start deserves its own sequence. Jog the motor briefly to confirm rotation direction before coupling up — a seal does not care about direction, but a pump running backwards can damage internals. Then, with the coupling connected, open the suction fully, crack the discharge, and start. Bring the pump to full speed without prolonged throttling at low flow, which heats the faces. If the pump vibrates or the gland heats fast, stop and re-check before the faces suffer.

Gland Bolt Torque and Tightening

Gland bolt torque is a real setting, not a feel. Too little and the gland leaks or the seal rotates; too much and you distort the gland and the faces. Torque values depend on bolt size, material and the seal design. The table below is a typical starting range for standard carbon-steel gland studs — always use the values in your seal's instruction sheet when they differ.

Tighten in a criss-cross sequence, in two or three passes, so the gland pulls down evenly. Re-check the torque after the first run — elastomers settle and bolts relax. If your seal instruction sheet lists different values, the instruction sheet wins.

Two practical notes on torque. Threads should be clean and lightly lubricated with the recommended thread lube — a dry or dirty thread reads a different torque than a lubed one, and the difference is enough to distort a gland. And if a stud spins in the casing while you tighten, stop: the stud needs repair before the seal goes in, because a gland held by one loose stud leaks under pressure.

The Running-In Procedure

New seal faces need a short lapping-in period. Run the pump at normal speed and let it settle — the faces wear together microscopically and the leak rate drops to normal. Do not throttle the pump up and down, and do not keep stopping it to inspect; the faces need continuous, steady running to bed in.

During run-in, watch three things: the leak rate at the gland, the temperature of the gland area, and any new vibration or noise. A small weep that dries up within the first hour is normal for many component seals. Rising temperature with no leak is also a warning — it usually means the faces are running too hard.

After the first hour, re-torque the gland bolts and re-check the flush arrangement. Record the installation date, the seal details and the run-in result in your maintenance log — this is the data you will use to judge the next seal.

How long does run-in take? On most clean-water duties the faces bed in within the first hour of continuous running and the leak settles to its normal rate. On harder duties — abrasive media, high temperature — allow a full shift before judging. If the weep has not reduced after that, investigate rather than wait: a leak that is stable but never improving is a symptom, not a settling process.

When to Call a Professional

Honest guidance: some seal jobs are best done by someone who does them weekly. Call a professional when the pump is large or hard to access, when the shaft or bore is damaged and needs repair or sleeving, when the media is hazardous and the risk is not worth the saving, or when a critical pump has failed repeatedly and the pattern is not yet understood.

Also call when you do not have the right tools. A seal forced in with improvised tools will fail — the labor saving disappears the first time the pump is down again. There is no shame in the professional call; there is a cost to the second failure.

A good seal service can also tell you why the last seal failed, which a parts order never will. Use them for the diagnosis and the install, then run the pump yourself.

One more honest case for the professional: warranty. If the pump is under warranty, or the seal failure is disputed with the previous supplier, an independent installation record — or a professional installer's report — protects your claim. A photo-documented install by a named technician is worth more in a warranty dispute than a verbal account.

Five Mistakes That Cause Early Failure

1) Scratching the faces during installation. 2) Wrong spring compression — too tight or too loose. 3) Installing on a damaged shaft. 4) Skipping the running-in period. 5) Using the wrong elastomer for the media. All five are avoidable.

Scratched faces happen when the seal is slid over a keyway without a sleeve, or when a face is dropped on the bench. Wrong spring compression comes from guessing instead of using the setting marks. A damaged shaft transfers its damage to the new faces within hours. A skipped running-in period robs the faces of the bedding they need. And the wrong elastomer swells, hardens or cracks in contact with the media — usually weeks later, when the seal is out of warranty.

All five are avoidable with the checklist earlier in this article. If your seals keep failing young, put the five mistakes on the toolbox and make them part of the job sign-off.

Finish the job on paper: record the seal part number, shaft and bore measurements, spring setting, torque values, run-in result and install date in the maintenance log. Six months from now, when someone asks why this pump's seal failed, that entry is the evidence — and it is the same evidence your supplier needs to help you improve the next order.
