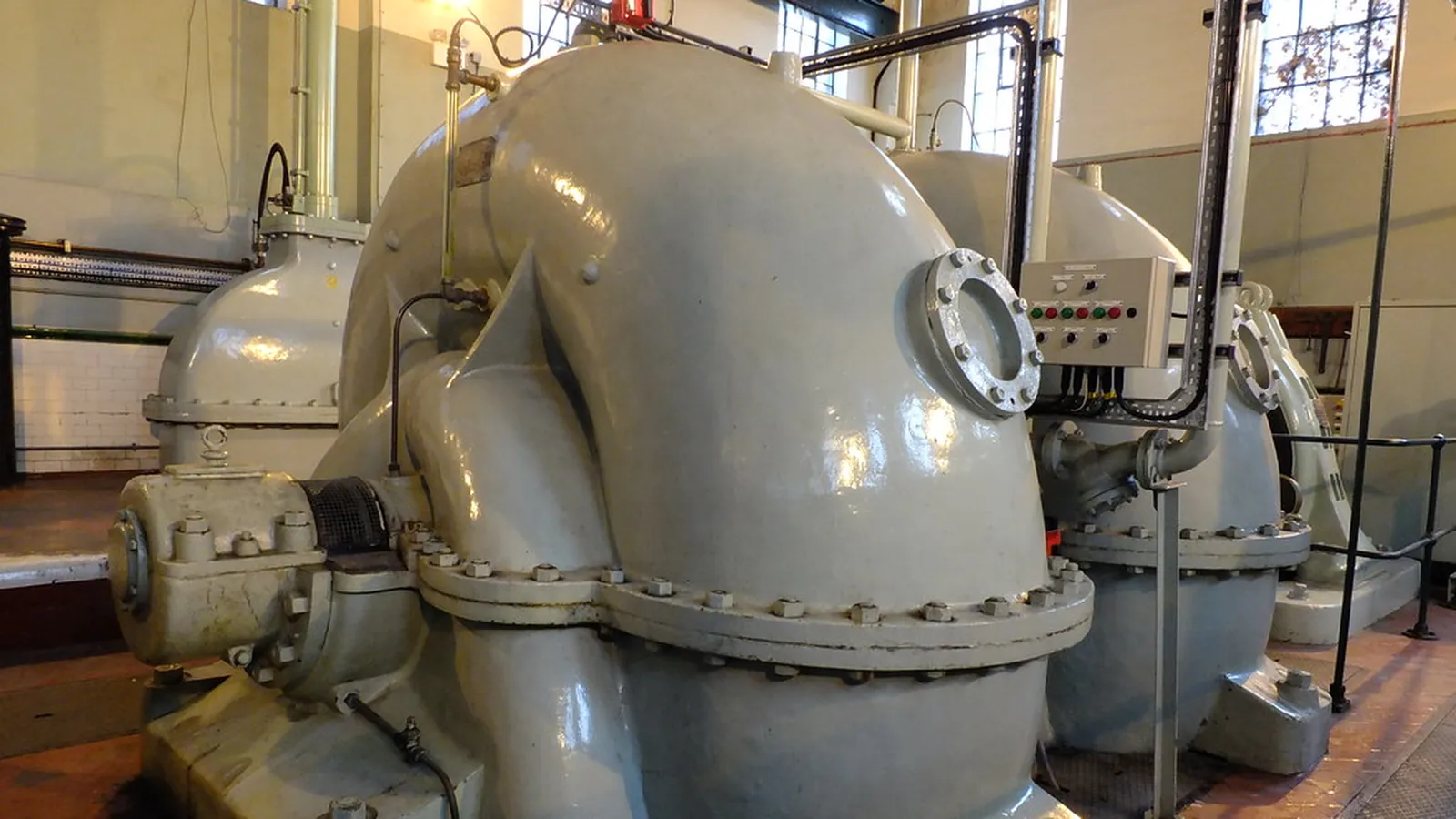

Centrifugal Pump Seal Installation in 10 Steps

Preparation

A mechanical seal fails in one of two ways: it wears out over years of honest service, or it is killed in the first hour by a poor installation. In our experience the second is far more common than most pump owners expect. Before you touch the pump, spend ten minutes confirming three things: the seal is the right size for the shaft and bore, the faces are clean and free of chips or scratches, and the manufacturer's installation instructions are in front of you. A seal installed at the wrong spring setting will leak or run hot no matter how carefully everything else is done.

Gather your tools before you start: a seal puller, fine abrasive paper (1200 grit or finer), lint-free cloths, the recommended lubricant for the elastomer, a split installation sleeve, a dial indicator, a depth gauge or calipers, and a torque wrench. Lay everything out where it will not collect dust. If the pump has been running recently, allow it to cool so the elastomers soften and the media drains safely. Then read the seal drawing once — the working length, spring setting and gland torque figures you need are all on that sheet.

Shaft Preparation Details

Shaft condition decides seal life more than any other single factor. The elastomer that grips the shaft must seal against a surface that is smooth, round and free of corrosion. A shaft with rust pits, deep scratches or a visible wear groove will let the seal weep no matter how well the faces are lapped. The general target is a surface roughness of Ra 0.8 µm or better where the seal sits; many seal manufacturers recommend Ra 0.4 µm for trouble-free service. If you cannot feel a scratch with a fingernail, the surface is usually acceptable for a standard elastomer seal.

Check the shaft for out-of-round and damage before installing anything. A badly pitted shaft can often be saved with a renewable shaft sleeve — a thin hardened sleeve that gives the seal a fresh surface without replacing the shaft. Do not try to hide damage with adhesive or filler; it will not hold. Also clean the shaft threads and keyway and remove any burrs that could cut the elastomer as the seal slides into place. If the shaft itself is worn beyond repair, replace it or fit a sleeve before you spend money on a new seal.

Step 1: Isolate and Drain

Isolate the pump completely before you start. Close the suction and discharge valves, drain the casing and any flush lines, and depressurize the system. If the pump handles hazardous or hot media, wait until it is cool and follow your site procedure for handling residual fluid. Electrical isolation matters just as much as hydraulic isolation — lock out the motor and tag the switch so nobody can start the pump while your hands are inside it.

Remove the coupling guard and confirm the coupling is free to rotate by hand. If the pump is driven through a gearbox or a belt, note the alignment marks before you disturb anything. Tools for this step: wrenches for the drain plug and valve stems, a drain bucket, rags, and lockout hardware. Common error: skipping the drain of the flush line, which spills trapped media onto the floor and into the seal chamber while you work.

Step 2: Remove the Old Seal

Remove the gland bolts, then the gland itself, and slide the rotating part of the old seal off the shaft. If the seal is stuck — common after years of service — use a seal puller or two screwdrivers worked gently from opposite sides. Never hammer the seal off the shaft; the impact can score the shaft and bend the gland. On some pumps the impeller must come off first to reach the seal; follow the pump manual for the correct order.

Before you throw the old seal away, treat it as evidence. Note the part number on the gland or sleeve, measure the shaft and bore, and look at the faces: a chipped face, a heat-cracked face or a worn-out elastomer each tells a different story about what killed the seal. Photograph it next to a ruler. This information confirms the correct replacement and may reveal a pump problem that would destroy the new seal too. Tools: puller, soft-faced hammer, camera.

Step 3: Clean and Polish the Shaft

Clean the shaft where the old seal sat. Wrap fine abrasive paper — 1200 grit or finer — around the shaft and rotate it evenly to remove scale, rust and old adhesive, then wipe with a lint-free cloth. The goal is a smooth, bright surface, not a mirror: polishing too aggressively removes shaft material and changes the diameter, which can make the seal loose on its seat.

Clean the seal chamber bore the same way. Old gasket material, scale and hard deposits must come off the bore face where the stationary seal sits, or the new seal will sit crooked and leak. Use a scraper with care — it is easy to nick the bore. Common error: using coarse emery cloth or a power tool on the shaft. Coarse paper cuts deep scratches that the new elastomer will seal poorly against, and a power grinder can take the shaft out of round in seconds.

Step 4: Check Shaft Runout and Axial Float

Before installing the new seal, check that the shaft runs true. Mount a dial indicator on the pump casing and rotate the shaft by hand, reading the runout at the seal location. As a general guide, runout at the seal area should be below about 0.1 mm for standard pumps — many seal drawings call for 0.05 mm or less. High runout makes the faces separate and close thousands of times per minute, which wears them out quickly.

Also check axial float — the free movement of the shaft along its axis, normally controlled by the bearings. Typical acceptable float is in the region of 0.1 to 0.3 mm. If the float is larger, the spring cannot follow the movement and the seal will leak intermittently. If either check fails, fix the pump first: bearings, shaft straightness or coupling alignment. Tools: dial indicator with magnetic base. Common error: installing a new seal on a bent shaft and blaming the seal three weeks later.

Step 5: Lubricate the Elastomer

The elastomer that grips the shaft and the bore must be lubricated before the seal goes on, or it will roll, tear or grab as it slides into place. Use the lubricant the seal manufacturer recommends — for water pumps, clean water or a soap solution is usually right; for chemicals, use the compatible O-ring lubricant. Never use oil or grease unless the instructions say so: some elastomers swell in petroleum products, and grease can contaminate the faces.

Apply the lubricant thinly to the elastomer only — never to the lapped faces. Faces must stay dry and clean. Common error: lubricating the faces to make the seal slide easier. Lubricant between the faces can flash, bake and cause the seal to stick after startup, and any grit in the lubricant will lap the faces like sandpaper. Tools: clean container, lint-free applicator.

Step 6: Protect the Seal Faces

The lapped faces are the heart of the seal — flat to within a micron or two and polished so they can run against each other with a film of liquid between them. They are also fragile. A dropped seal, a tapped face or a grain of sand between the faces can end the seal's life before it starts. Once the faces leave their packaging, handle the seal by its outer edges only, and never touch the faces with bare fingers — skin oils and dirt do not belong on a lapped surface.

Use the split installation sleeve that ships with most seals, or a clean strip of card, to protect the faces while the seal slides over the shaft. Keep the sleeve in place until the seal is positioned, then remove it carefully. Tools: the installation sleeve, clean gloves. Common error: tapping the seal onto the shaft with a hammer or mallet — the shock can chip the faces or break the drive pins. If a seal does not slide on by hand, the shaft is not clean enough; go back to Step 3.

Step 7: Install the Rotating Face

Slide the rotating assembly over the shaft and position it at the correct depth, with the face square to the shaft. Square is the key word: if the rotating face is cocked even slightly, the two faces will not meet evenly and the seal will leak along the low side. Most seals use a set screw or drive collar to lock the rotating part to the shaft; tighten it just enough to hold the seal — most set screws take surprisingly little torque, typically in the 1.5 to 5 Nm range for small sizes.

Check squareness if you have a dial indicator: the face should not run out more than about 0.05 mm when the shaft is rotated. Tools: hex key, torque wrench, dial indicator. Common error: overtightening the set screws, which distorts the sleeve or collar and makes the shaft run eccentric under the seal. If the seal has locating marks, align them per the drawing — some seals are directional.

Step 8: Seat the Stationary Face and Gland

The stationary face sits in the gland or the pump bore, sealed by its own elastomer. Lubricate that elastomer, then press the stationary face in squarely — never at an angle. A cocked stationary face is one of the most common installation faults and it always leaks. The gland should slide over the shaft without binding and seat flat against the pump face; clean any burrs off the gland before it goes on.

Tighten the gland bolts evenly, in a cross pattern, in two or three passes, so the gland does not tilt as it is pulled down. If the pump is made of a soft material like cast iron, respect the torque limits — gland bolts are typically torqued in the 15 to 40 Nm range for common sizes, but always follow the drawing. Tools: torque wrench, socket set. Common error: tightening one bolt fully, then the other, which cocks the gland and the stationary face with it.

Step 9: Set Spring Compression

Spring compression — the installed working length of the seal — controls the pressure between the faces. Too little and the faces barely touch, so the seal leaks; too much and the faces press hard, run hot and wear out fast. The seal drawing gives the installed working length, usually measured from a fixed point on the gland to the face or a reference shoulder. Measure it with a depth gauge or calipers and adjust until it matches the drawing within tolerance.

Do not guess this setting. A close-enough spring setting is the classic cause of seals that run hot, squeal, or leak from day one. Most single springs need only one to two millimetres of compression from their free length, but the exact figure belongs to the drawing, not to memory. Tools: depth gauge, calipers. Common error: leaving the seal at its free length because it looks right — without the correct working length, face pressure is entirely wrong.

Common Torque Values

Torque matters for three groups of fasteners on a seal installation: the set screws that lock the rotating part to the shaft, the gland bolts that hold the stationary part, and the bolts of the seal chamber cover. The numbers below are typical ranges for common metric sizes — treat them as a sanity check, not as a substitute for the values on your seal drawing, which always win.

If the pump manual specifies different values, follow the pump manual. When in doubt, err on the low side for gland bolts and verify the seal does not leak before increasing torque — a seal is not a pipe flange, and brute force is the enemy of a flat gland. Always use a torque wrench for these fasteners; tight enough by feel is how glands get cocked. Re-torque after the first hours of running if the drawing recommends it, because gaskets and elastomers relax.

Step 10: Reassemble and Run In

Reassemble the pump in the reverse order of disassembly: impeller (if removed), casing, coupling, coupling guard. Check that the coupling is aligned — a misaligned coupling shakes the shaft, and the seal feels it first. Open the suction valve, fill and vent the casing, then open the discharge valve. Jog the motor briefly to confirm the rotation direction is correct before running continuously; a pump run backwards can unseat a directional seal.

Start the pump and watch it for the first few minutes. A very slight weep at the gland during the first minutes is often normal while the faces seat in; a steady drip is not. Listen for squealing or chattering, which usually means dry faces or wrong spring compression. Tools: coupling alignment kit or straightedge, vent wrench. Common error: starting the pump against a closed discharge valve and letting the casing overheat, which boils the liquid and destroys the faces.

First-Startup Checklist

The first thirty minutes decide the seal's whole life, and they are the cheapest insurance you will ever buy for it. Run through this checklist at startup and again after the pump reaches operating temperature — the two moments when most early failures announce themselves. Skim the list before you open the first valve, so nothing gets skipped in the excitement of a new installation.

• Flush line open and flowing before the pump starts (if fitted).
• Casing vented — a dry-running seal can be ruined in under a minute.
• Rotation direction verified against the arrow on the casing.
• Discharge valve open far enough to prevent recirculation heating.
• No abnormal noise or vibration; gland temperature stable, not hot to the touch.
• A slight initial weep settles within the first minutes; any drip that continues is a fault.

If anything looks wrong in the first half hour, stop the pump and investigate — a seal that leaks, squeals or runs hot after thirty minutes is telling you something, not asking for patience. Running a suspect seal for hours to see if it settles is how small problems become burnt faces and a scored shaft. Record the startup observations in the pump log; they are the baseline for the next inspection, and they will answer questions you have long forgotten.

Post-Installation Checks

Check for leaks at three points: immediately at startup, after the pump reaches operating temperature, and after a few hours of running. A seal can look perfect cold and weep once the casing heats up, because thermal growth changes the spring setting. Re-check gland bolt torque after the first hours if the drawing allows it, and look at the gland for moisture, crystallization or stains.

Watch for abnormal noise or vibration too — a seal rarely fails silently. Write down the installation details: seal part number, date, installer, measured shaft and bore, spring setting, and any pump repairs done at the same time. That record is worth its weight when the seal comes out in two years and somebody has to decide whether it lived a full life or died young.
